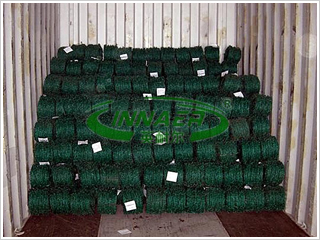

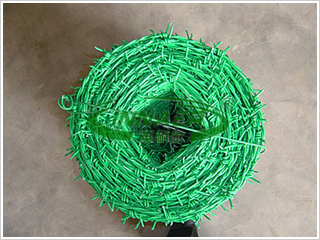

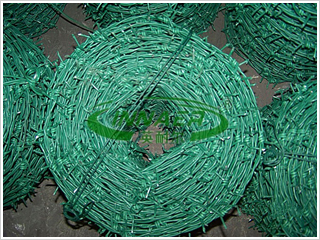

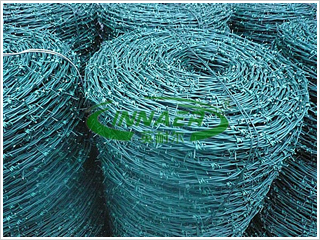

Barbed wire is used to build security fencing for livestock, private area, industrial area, warehouse or sensitive sites and to construct barrier for military fortifications. We can supply not only galvanized barbed wire, but also PVC coated barbed wire for security and protection. PVC coated is that the wire covered with vinyl. The PVC layer not only has a positive effect on the strength and toughness of the material, but also reduces the risk of rust. It also can reduce the wear between layers when operating. PVC coated barbed wire is the ideal type for ocean engineering, irrigation machines and big excavators. Our PVC coated barbed wire consists of 2 twisted wires with 4 spikes, spaced 65mm-120mm apart from each other. | | PVC Coated Barbed Wire-01 | PVC Coated Barbed Wire-02 | | | PVC Coated Barbed Wire-03 | PVC Coated Barbed Wire-04 |

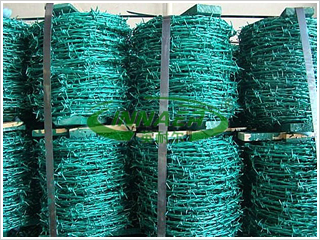

Specification: Polymeric coating (green RAL 6005). Inside wire: galvanized wire PVC coating thickness: 0.4mm -0.6mm Twisted wire diameter: Inside wire diameter: 1.6mm -3.5mm, Outside wire diameter: 2.0mm -4.0mm Thorns wire diameter: 1.5mm -3.0 mm. Package: 50m, 100m, 250m, 400m/coil or 30kg-50kg/coil | | PVC Coated Barbed Wire-05 | PVC Coated Barbed Wire-06 |
Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | 12# x 12# | 12# x 14# | 14# x 14# | 14# x 16# | 16# x 16# | 16# x 18# | PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 | 1.0mm-3.5mm | 1.4mm-4.0mm | BWG11#-20# | BWG8#-17# | SWG11#-20# | SWG8#-17# | | PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. | | |
